Inductive Siamese Ion Wind Snake
Model：KP3009C
application area
Product overview

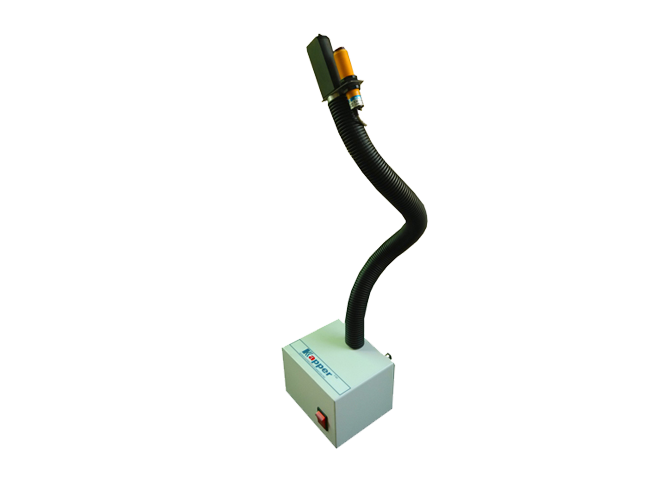

KP3009C inductive conjoined ion wind snake is an antistatic device developed and produced by Kapal to eliminate static electricity on the surface of objects.
KP3009C induction type conjoined ion wind snake is a sitting-stand static eliminator, which can be manually deformed to make the wind snake point to the target direction, so that the ion airflow can be directly blown to the target surface, which is easy to move and can be placed in various work areas. In addition to electrostatic dust removal, it can only be used with compressed air.
The KP3009C inductive conjoined ion wind snake can generate a large amount of airflow with positive and negative charges, which can neutralize the charges on objects. When the surface of the object is negatively charged, it will attract the positive charge in the airflow. When the surface of the object is positively charged, it will attract the negative charge in the airflow, so that the static electricity on the surface of the object is neutralized and eliminated. purpose of static electricity.
KP3009C inductive conjoined ion wind snake is used in electronic assembly line, medical device manufacturing, semiconductor production and flat panel display manufacturing and other industries.
Product features
* Quickly eliminate static electricity.
* Small size and space saving.
* Control airflow through infrared photoelectric sensor switch, avoiding manual operation.
* The wind snake can be rotated to make the nozzle point to the target position, and the ion airflow can be directly blown to the target surface without manual operation.
* Wind snake has a good grounding protection function.
Technical parameter
Use voltage | 220V/50Hz or 110V/60Hz |
The output voltage | AC 4.6KV |
power | 26W |
working distance | 100－300mm |
Ion balance | ≤|±30V| |
Power down time | ≤2S |
Operating temperature | 0℃-50℃ |
Working humidity | ＜70% |
noise | ＜70dB |
weight | 3.2kg |
surface | paint |
use medium | clean compressed air |
Air supply connector | Ф8mm（Customized according to customer requirements） |
compressed air pressure | 0.3-0.8Mpa |
Air velocity | 3-10m/S |
Coil length | 525mm |
Power cord length | 1.8M |
Test result
Test Conditions | |||
Humidity: ≤60% Test voltage: 1KV-100V Ambient temperature: 22℃ | |||
distance | 300mm | ||
Neutralization time | just | 0.8s | |
burden | 0.9s | ||
residual voltage | ≤±30V | ||
* The test results of the test instrument using ME268A electrostatic comprehensive tester shall prevail.
* Tested according to IEC-61340-5-1 A·6.
* Tested data may vary due to changes in ambient temperature and humidity.
