The 4.5th generation mechanical and intelligent red ion wind rod
Model：KP506A
application area
Product overview
KP506A 4.5th generation mechanical and intelligent red ion wind bar is the latest static removal device developed and produced by Kapal to eliminate static electricity on the surface of objects.
KP506A 4.5th generation mechanical and intelligent red ion air bar is a static elimination device that can be connected or not connected to compressed air. within 300mm. It is a fixed static elimination equipment, which needs to be equipped with compressed air and a 7.0KV high-voltage power supply before it can be used. The length can be customized according to customer's requirements. It has the characteristics of easy installation, stable operation and fast elimination of static electricity.
KP506A 4.5th generation mechanical and intelligent red ion wind rod can generate a large number of positive and negative charges, which can neutralize the static electricity in the ion radiation area. When the charge on the surface of the object is negative, it will attract the positive charge in the radiation area. When the charge on the surface of the object is positive, it will attract the negative charge in the radiation area, so that the static electricity on the surface of the object is absorbed. Neutralize to achieve the purpose of eliminating static electricity. Since static electricity is easy to absorb dust, the surface of the product is not easy to absorb dust after static electricity is removed.
KP506A 4.5th generation mechanical and intelligent red ion wind bar is widely used in sheet material processing, slitting, coiling and other flat occasions to eliminate static electricity.
Product features
1. Exquisite appearance and fine craftsmanship.
2. The shell is made of aluminum alloy, and the interior is made of synthetic plastic with high insulation performance, which has high safety performance.
3. Freely connect compressed air to neutralize static electricity quickly.
4. The rod body has a special bar-shaped notch, and the installation bolts are movable and convenient.
5. Special design to prevent electric shock, the transmitter electrode is not afraid of short circuit and has a long service life.
6. Fully sealed structure, not easy to be polluted, suitable for high humidity working environment.
Technical parameter
Use voltage | 220V/50Hz or 110V/60Hz |
The output voltage | AC 7.0KV |
working distance | 10－300mm |
Operating temperature | 0℃-50℃ |
Working humidity | ＜70% |
net weight | 0.6kg/600mm（Including 3M high voltage wire） |
High voltage wire length | 3M |
compressed air pressure | 40-70psi |
use medium | clean compressed air |
Air supply connector | Ф8mm |
Rod length | 100-3000MM（Customized according to customer requirements） |
cross-sectional area | 22.6mm(W)*40mm(H)*230mm(L) |
Shell material | Aluminum |
Test result
Test Conditions | |||
Humidity: ≤60% Test voltage: 1KV-100V Ambient temperature: 22℃ | |||
distance | 300mm | 600mm | |
Neutralization time | just | 0.3s | 0.6s |
burden | 0.3s | 0.6s | |
residual voltage | just | +21v | +25v |
burden | -23v | -24v | |
* The test results of the test instrument using ME268A electrostatic comprehensive tester shall prevail.
* Tested according to IEC-61340-5-1 A·6.
* Tested data may vary due to changes in ambient temperature and humidity.

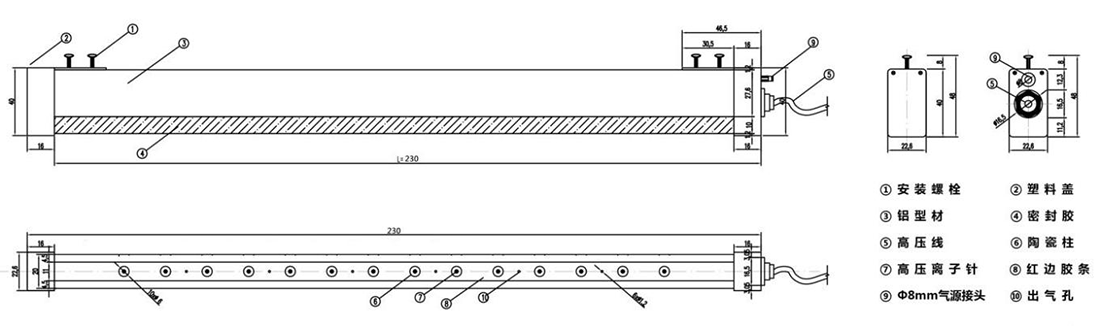

Overall dimension
Installation mode
