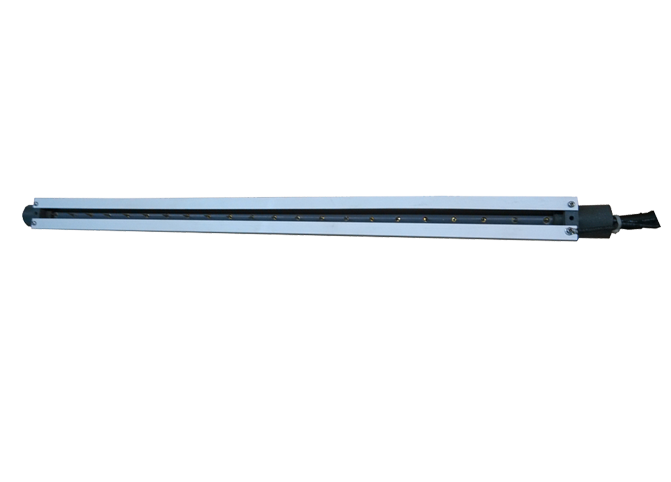

KP5007A Ion Bar
Model：KP5007A
application area
Product overview
KP5007A ion bar is a static elimination device developed and produced by Kapal Company to eliminate static electricity on the surface of objects.
KP5007A ion bar is a kind of static elimination device that is often used to eliminate static electricity without compressed air. It needs to be equipped with KP4002A high voltage power supply before it can be used. The length can be customized according to customer's requirements.
The KP5007A ion rod can generate a large amount of airflow with positive and negative charges, which can neutralize the charges on objects. When the surface of the object is negatively charged, it will attract the positive charge in the airflow. When the surface of the object is positively charged, it will attract the negative charge in the airflow, so that the static electricity on the surface of the object is neutralized and eliminated. purpose of static electricity.
KP5007A ion bar is widely used in sheet material processing, slitting, packaging, roll material, textile, printing and other industries
。
Product features
* Neutralize static electricity quickly.
* The rod has good ground protection.
Technical parameter
Operating Voltage | AC 5.6KV |
working distance | 100mm |
Operating temperature | 0℃-50℃ |
Working humidity | ＜70% |
Ion balance | ≤|±50V|（300mm from the test center before the rod） |
Power down time | ≤2S（300mm from the test center before the rod） |
Rod length | 300-1000MM（Customized according to customer requirements） |
cross-sectional area | 34mm(W)* 43mm(H)* X(any length)mm |
Rod material | plastic |
High voltage wire length | 3M |
