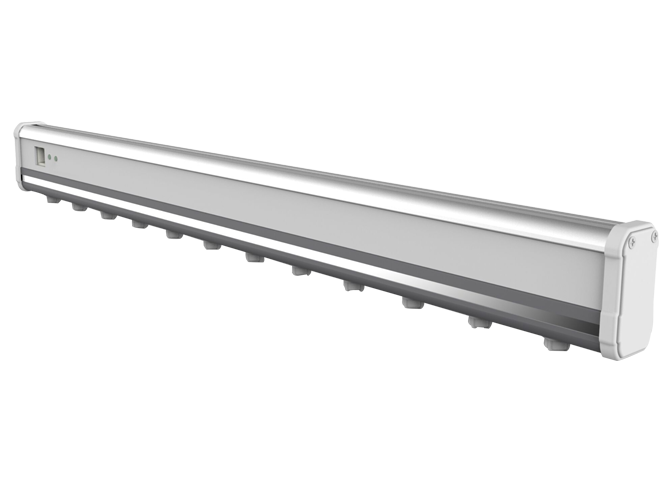

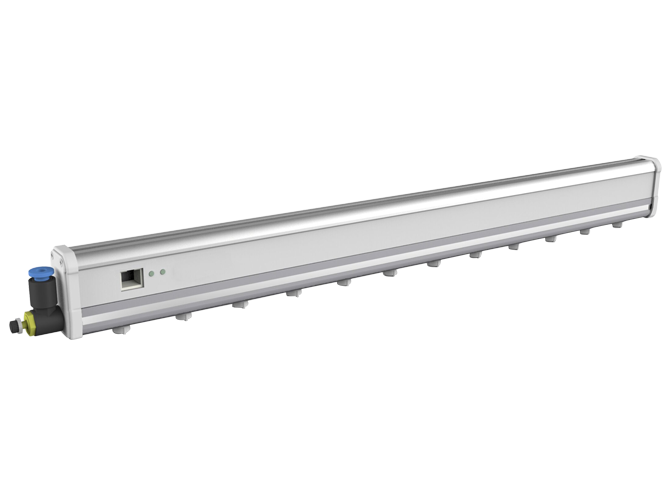

The 5th generation intelligent ion bar
Model：KP504A
application area
Product overview
The KP504A fifth-generation intelligent ion bar is a rod-type static-removing device newly developed and produced by Kapal to eliminate static electricity on the surface of objects.
The KP504A fifth-generation intelligent ion bar uses a DC high voltage power supply and a special alloy electrode. The positive and negative DC high voltages act on the electrode needle alternately, that is, the DC high voltage source uses the AC method to generate corona discharge, ionizes air molecules, and produces A large number of positive and negative air ions are transported to the surface of the object with static electricity to neutralize the positive and negative electrostatic charges, so as to achieve the purpose of efficiently and reliably eliminating static electricity on the surface of the object.
Can be widely used in electronics, plastics, chemicals, printing, textiles, optoelectronics and other industries.
Product features
1. It is a rod-type, horizontal static eliminator.
2. Manufactured with patented technology of removing static electricity.
3. The speed of removing electricity is fast, the balance voltage is low, and the safety performance is high.
4. With high voltage fault alarm prompt function.
Technical parameter
The output voltage | DC±5KV |
Output frequency | 30Hz（default setting） |
duty cycle | 48%—51% |
power | 10W |
working distance | 100－1000mm |
Ion balance | ≤|±30V| |
Power down time | ≤2S |
Operating temperature | 0℃-50℃ |
Working humidity | ＜70% |
Air pressure range | 0.1-0.6MPa |
wire length | 1.8M |
Rod length | 335-410MM (spacing 25MM), 460-2960MM (spacing 50MM) |

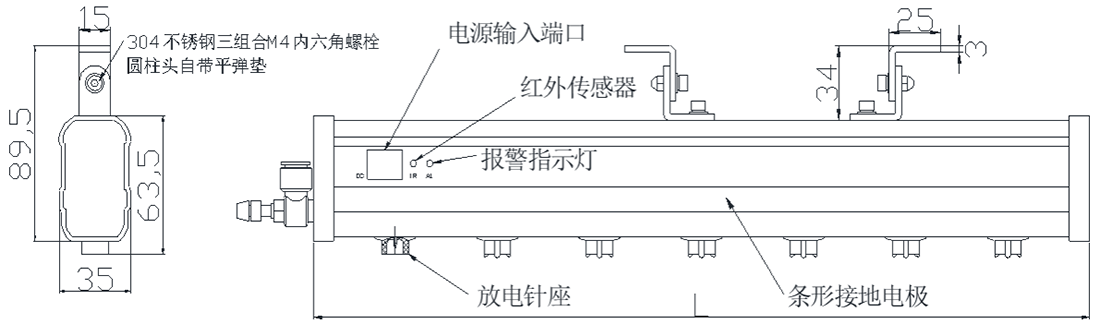

Overall dimension
Installation mode
